ASP-40

 ASP-60 ASP-80
ASP-200 ¡@ASP-200(SG) ¡@
¡@ ¡@ ¡@

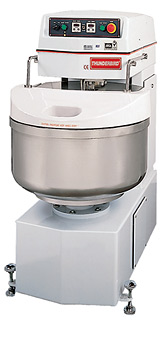

ASP-40

6Hp spiral mixer designed especially for heavy dough like pizza and bagel. Long lasting stainless steel 60 qt bowl that can handle 88 lbs of dough with plastic cover to prevent flour flow out.

Two speed motor with timer and separate bowl drive motor. Bowl jog control makes for easy unloading. Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.

Spec Sheet
Models Flour capacity (kg)/(lbs) 25/55
Dough capacity (kg)/(lbs) 40/88
Bowl capacity (qts) 63
Dia. of bowl (mm) 530
Height of bowl (mm) 360
Motor power: 6HP 1st speed (kw) 0.9
2nd speed (kw) 1.6
Bowl(kw) 0.6
Dimensions Width (mm) 555 / 22in
Length (mm) 848 / 34in
Height(mm) 1155 / 46in
    Machine Weight      (kg/lb) 208/458

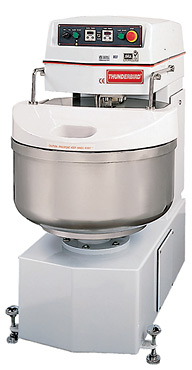

ASP-60

7Hp spiral mixer designed especially for heavy dough like pizza and bagel. Long lasting stainless steel 110 qt bowl that can handle 132 lbs of dough with plastic cover to prevent flour flow out.

Two speed motor with timer and separate bowl drive motor. Bowl jog control makes for easy unloading. Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.

Spec Sheet
Models Flour capacity (kg)/(lbs) 40/88
Dough capacity (kg)/(lbs) 60/132
Bowl capacity (qts) 110
Dia. of bowl (mm) 600
Height of bowl (mm) 360
Motor power:7HP/1HP 1st speed (kw) 2.0
2nd speed (kw) 4.0
Bowl(kw) 0.6
Dimensions Width (mm) 655 / 26in
Length (mm) 1120 / 44in
Height(mm) 1318 / 52in
    Machine Weight      (kg/lb) 380/838

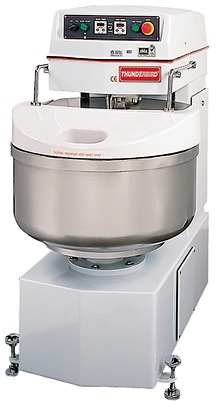

ASP-80

7.5Hp spiral mixer designed especially for heavy dough like pizza and bagel. Long lasting stainless steel 135 qt bowl that can handle 176 lbs of dough with plastic cover to prevent flour flow out.

Two speed motor with timer and separate bowl drive motor. Bowl jog control makes for easy unloading. Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.

Spec Sheet
Models Flour capacity (kg)/(lbs) 50/110
Dough capacity (kg)/(lbs) 80/176
Bowl capacity (qts) 135
Dia. of bowl (mm) 700 / 28in
Height of bowl (mm) 360 / 14.17in
Motor power:7.5HP/1HP 1st speed (kw) 2.2
2nd speed (kw) 4.2
Bowl(kw) 0.6
Dimensions Width (mm) 718 / 29in
Length (mm) 1178 / 47in
Height(mm) 1398 / 56in
    Machine Weight      (kg/lb) 395/868

¡@

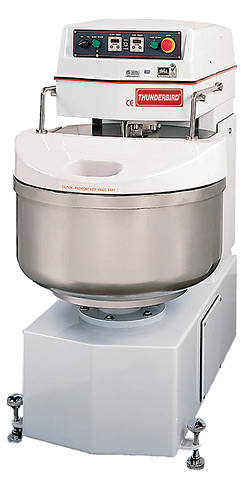

ASP-120

8Hp spiral mixer designed especially for heavy dough like pizza and bagel. Long lasting stainless steel 195 qt bowl that can handle 275 lbs of dough with plastic cover to prevent flour flow out.

Two speed motor with timer and separate bowl drive motor, Bowl jog control makes for easy unloading. Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.

Spec Sheet
Models Flour capacity (kg)/(lbs) 78/172
Dough capacity (kg)/(lbs) 125/275
Bowl capacity (qts) 195
Dia. of bowl (mm) 800 / 32in
Height of bowl (mm) 410 / 16.15in
Motor power:8HP/1HP 1st speed (kw) 2.6
2nd speed (kw) 4.8
Bowl(kw) 0.6
Dimensions Width (mm) 788 / 32in
Length (mm) 1268 / 52in
Height(mm) 1398 / 56in
    Machine Weight      (kg/lb) 544/1200

¡@

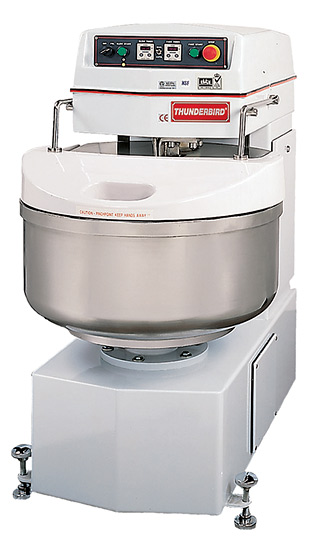

ASP-160

12Hp spiral mixer designed especially for heavy dough like pizza and bagel. Long lasting stainless steel 280 qt bowl that can handle 352 lbs of dough with plastic cover to prevent flour flow out.

Two speed motor with timer and separate bowl drive motor. Bowl jog control makes for easy unloading. Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.

Spec Sheet
Models Flour capacity (kg)/(lbs) 100/220
Dough capacity (kg)/(lbs) 160/352
Bowl capacity (qts) 281
Dia. of bowl (mm) 900 / 36in
Height of bowl (mm) 450 / 17.80in
Motor power:12HP/1.5HP 1st speed (kw) 4.8
2nd speed (kw) 7.6
Bowl(kw) 0.78
Dimensions Width (mm) 888 / 37in
Length (mm) 1438 / 57in
Height(mm) 1488 / 59in
    Machine Weight      (kg/lb) 680/1498

¡@

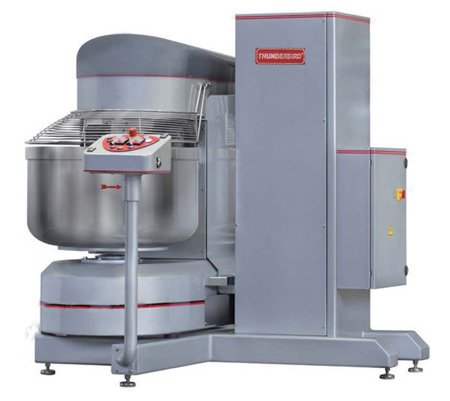

ASP-160(L)

Spec Sheet
Models Flour capacity (kg)/(lbs) 100/220
Dough capacity (kg)/(lbs) 160/352
Bowl capacity (qts) 281
Dia. of bowl (mm) 900 / 36in
Height of bowl (mm) 450 / 17.80in
Dimensions Width (mm) 1750mm/69in
Length (mm) 1586mm/62.5in
Height(mm) 2155mm/85in
    Machine Weight      (kg/lb) 1490/3278

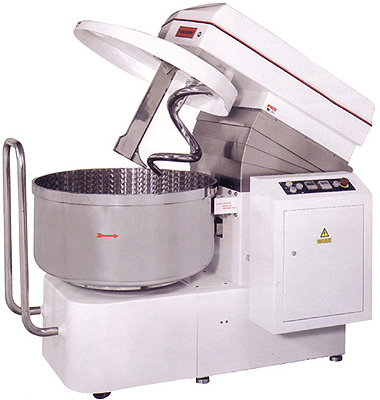

ASP-200

15Hp spiral mixer with removable bowl designed especially for heavy dough like pizza and bagel. Long lasting stainless steel 318 qt bowl that can handle "440 lbs of dough with plastic cover to prevent flour flow out.

Two speed motor with timer and separate bowl drive motor. Bowl jog control makes for easy unloading. Interlocked bowl guard switch prevents operation when guard is up. 220V/380V, 50Hz/60Hz, 3 phase.

Spec Sheet
Models Flour capacity (kg)/(lbs) 128/282
Dough capacity (kg)/(lbs) 200/440
Bowl capacity (qts) 336
Dia. of bowl (mm) 900 / 36in
Height of bowl (mm) 450 / 17.80in
Motor power:15HP/1.5HP 1st speed (kw) 5.8
2nd speed (kw) 9.8
Bowl(kw) 0.78
Dimensions Width (mm) 890 / 37in
Length (mm) 1680 / 66in
Height(mm) 1478 / 58.5
    Machine Weight      (kg/lb) 850/1870


¡@

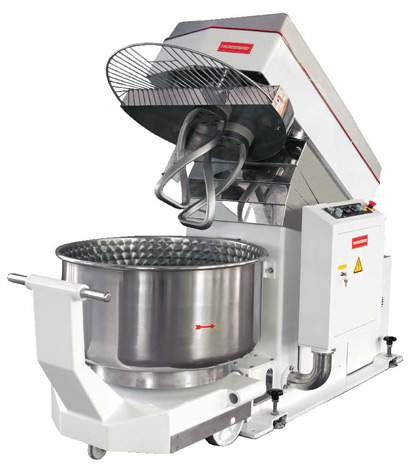

ASP-200(SG)
TWIN TWIST MIXER

Spec Sheet
Models Flour capacity (kg)/(lbs) 128/282
Dough capacity (kg)/(lbs) 200/440
Bowl capacity (qts) 336
Dia. of bowl (mm) 900 / 36in
Height of bowl (mm) 450 / 17.80in
Electrics 220V 60Hz, 3 Phase
Dimensions Width (mm) 950mm/37.5in
Length (mm) 2450mm/96.5in
Height(mm) 1500mm/59in
    Machine Weight      (kg/lb) 1000/2200


We reserve the right for any technical specifications changes without notice.
