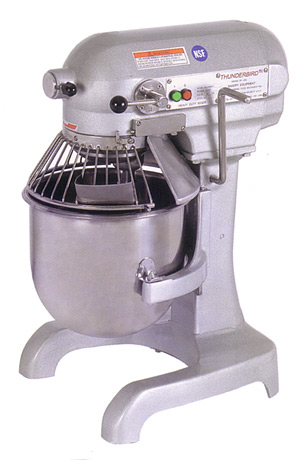

ARM-01
10 Quart |
|
    |
| Design
Heave-duty, all purpose
mixers use a powerful, planetary mixing action
to thoroughly blend, mix and aerate all ingredients
with consistent and predictable results.
Features
- 10-quart
capacity
- Powerful ½ HP
motor
- 115v/60/1,
8.5amps (220v/60/1 and 220v/50/1 available
at additional cost)
- 3-Speed gear
box
- Transmission:
Wide-faced, hardened alloy steel, helical
gears fully sealed in transmission lubricant
with heavy-duty ball bearings and clutch
combine for highly dependable, quiet
operation.
- Motor cooling
system.
- New safety Guard
available.
- NSF approved
coating.
- Baked painting.
- Moisture
resistant switches
- Motor thermal protector.
- No-volt
Release: Prevents activation of the mixer in
the event of power interruption
- Bowl lift:
Manual bowl lift operated and self-locking
in to position
- #8 size taper
hub for attachments
- Cast base
construction. Silver metallic finish using
epoxy powder coat enamel for easy cleaning
- Attached
6-foot, flexible, 3-wire cord and plug for
grounded receptacle
Standard Accessories
- 10-quart
s/steel bowl.¡@
- Flat batter beater
- Spiral dough hook
- Wire whip
- Safety bowl Guard
- Attachment hub
Optional
Accessories
- #8 taper hub meat
grinder (ARM-01A)
- EXTENDED WARRANTY up
to 6 years
|
|
Spec Sheet |
| Motor |
3-speed
1/2HP continuous
8.5 amps |
| Electrical |
115/60/1
220v/60/1 and
220v/50/1 available |
| Speed Range |
Beater: 40-142
Hub: 97-350 |
| Weight |
Net: 74lbs (34kg)
Ship: 83lbs (38kg) |
| Product Dimensions |
Width: 14'' (360mm)
Depth: 18'' (460mm)
Height: 24'' (610mm) |
| Box Dimensions |
Width: 19'' (485mm)
Depth: 19'' (485mm)
Height: 29'' (740mm) |
|
|

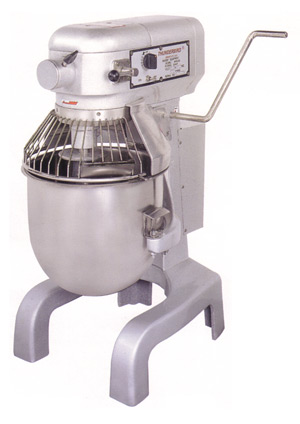

ARM-02
20 Quart |
|
|
| Design
Heave-duty, all purpose
mixers use a powerful, planetary mixing action
to thoroughly blend, mix and aerate all ingredients
with consistent and predictable results.
Features
- 20-quart
capacity
- 1-15minute
timer for continuous or timed operation
- Powerful 3/4 HP
motor
- 115v/60/1,
14amps (220v/60/1 and 220v/50/1 available at
additional cost)
- 3-Speed gear
box
- Transmission:
Wide-faced, hardened alloy steel, helical
gears fully sealed in transmission lubricant
with heavy-duty ball bearings and clutch
combine for highly dependable, quiet
operation.
- Motor cooling
system.
- New safety Guard
available.
- NSF approved
coating.
- Baked painting.
- Moisture
resistant switches
- Motor thermal protector.
- No-volt
Release: Prevents activation of the mixer in
the event of power interruption
- Bowl lift:
Manual bowl lift operated and self-locking
in to position
- #12 size taper
hub for attachments
- Cast base
construction. Silver metallic finish using
epoxy powder coat enamel for easy cleaning
- Attached
6-foot, flexible, 3-wire cord and plug for
grounded receptacle
Standard Accessories
- 20-quart
s/steel bowl.¡@
- Flat batter beater
- Spiral dough hook
- Wire whip
- Safety bowl Guard
- Attachment hub
Optional
Accessories
- #12 taper hub meat
grinder (ARM-02A)
- #12 taper hub
Vegetable shredder with plate holder
(ARM-02B)
- Bowl dolly
- Reduction set
- EXTENDED WARRANTY up
to 6 years
|
|
Spec Sheet |
| Motor |
3-speed
3/4HP continuous
14 amps |
| Electrical |
115/60/1
220v/60/1 and
220v/50/1 available |
| Speed Range |
Beater: 46-155
Hub: 106-357 |
| Weight |
Net: 396lbs (102kg)
Ship: 467lbs (113kg) |
| Product Dimensions |
Width: 15'' (380mm)
Depth: 22'' (560mm)
Height: 32'' (815mm) |
| Box Dimensions |
Width: 22'' (560mm)
Depth: 22'' (560mm)
Height: 38'' (965mm) |
|
|

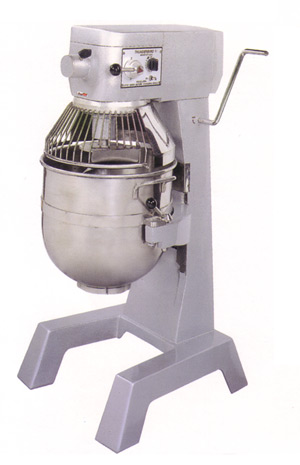

ARM-30
30 Quart |
|
|
| Design
Heave-duty, all purpose
mixers use a powerful, planetary mixing action
to thoroughly blend, mix and aerate all ingredients
with consistent and predictable results.
Features
- 30-quart
capacity
- 1-15minute
timer for continuous or timed operation
- Powerful 1 HP
motor
- 115v/60/1,
20amps (220v/60/1 and 220v/50/1 available at
additional cost)
- 3-Speed gear
box
- Transmission:
Wide-faced, hardened alloy steel, helical
gears fully sealed in transmission lubricant
with heavy-duty ball bearings and clutch
combine for highly dependable, quiet
operation.
- Motor cooling
system.
- New safety Guard
available.
- NSF approved
coating.
- Baked painting.
- Moisture
resistant switches
- Motor thermal protector.
- No-volt
Release: Prevents activation of the mixer in
the event of power interruption
- Bowl lift:
Manual bowl lift operated and self-locking
in to position
- #12 size taper
hub for attachments
- Cast base
construction. Silver metallic finish using
epoxy powder coat enamel for easy cleaning
- Attached
6-foot, flexible, 3-wire cord and plug for
grounded receptacle
Standard Accessories
- 30-quart
s/steel bowl.¡@
- Flat batter beater
- Spiral dough hook
- Wire whip
- Safety bowl Guard
- Attachment hub
Optional
Accessories
- #12 taper hub meat
grinder (ARM-02A)
- #12 taper hub
Vegetable shredder with plate holder
(ARM-02B)
- Bowl dolly
- Reduction set
- EXTENDED WARRANTY up
to 6 years
|
|
Spec Sheet |
| Motor |
3-speed
1HP continuous
20 amps |
| Electrical |
115/60/1
220v/60/1 and
220v/50/1 available |
| Speed Range |
Beater: 40-150
Hub: 105-338 |
| Weight |
Net: 396lbs (180kg)
Ship: 467lbs (212kg) |
| Product Dimensions |
Width: 25'' (635mm)
Depth: 25'' (560mm)
Height: 46'' (1168mm) |
| Box Dimensions |
Width: 28'' (711mm)
Depth: 28'' (711mm)
Height: 52'' (1320mm) |
|
|
ARM-40
40 Quart |
|
|
| Design
Heave-duty, all purpose
mixers use a powerful, planetary mixing action
to thoroughly blend, mix and aerate all ingredients
with consistent and predictable results.
Features
- 40-quart
capacity
- 1-15minute
timer for continuous or timed operation
- Powerful 1.5 HP
motor
- 115v/60/1,
30amps (220v/60/1 and 220v/50/1 available at
additional cost)
- 3-Speed gear
box
- Transmission:
Wide-faced, hardened alloy steel, helical
gears fully sealed in transmission lubricant
with heavy-duty ball bearings and clutch
combine for highly dependable, quiet
operation.
- Motor cooling
system.
- New safety Guard
available.
- NSF approved
coating.
- Baked painting.
- Moisture
resistant switches
- Motor thermal protector.
- No-volt
Release: Prevents activation of the mixer in
the event of power interruption
- Bowl lift:
Manual bowl lift operated and self-locking
in to position
- #12 size taper
hub for attachments
- Cast base
construction. Silver metallic finish using
epoxy powder coat enamel for easy cleaning
- Attached
6-foot, flexible, 3-wire cord and plug for
grounded receptacle
Standard Accessories
- 40-quart
s/steel bowl.¡@
- Flat batter beater
- Spiral dough hook
- Wire whip
- Safety bowl Guard
- Attachment hub
Optional
Accessories
- #12 taper hub meat
grinder (ARM-02A)
- #12 taper hub
Vegetable shredder with plate holder
(ARM-02B)
- Bowl dolly
- Reduction set
- EXTENDED WARRANTY up
to 6 years
|
|
Spec Sheet |
| Motor |
3-speed
1.5HP continuous
30 amps |
| Electrical |
115/60/1
220v/60/1 and
220v/50/1 available |
| Speed Range |
Beater: 46-150
Hub: 105-338 |
| Weight |
Net: 415lbs (189kg)
Ship: 490lbs (223kg) |
| Product Dimensions |
Width: 25'' (635mm)
Depth: 25'' (560mm)
Height: 46'' (1168mm) |
| Box Dimensions |
Width: 28'' (711mm)
Depth: 28'' (711mm)
Height: 52'' (1320mm) |
|
|

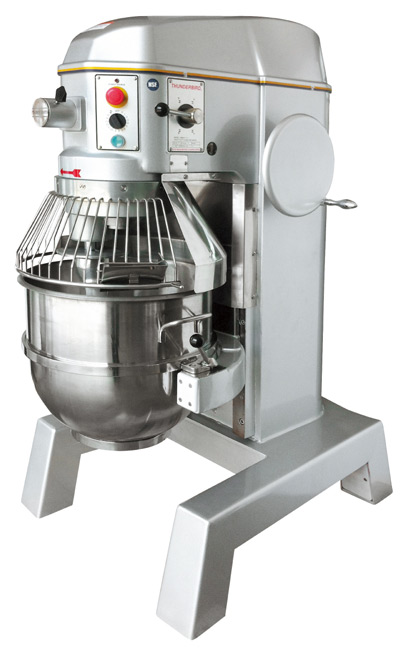

ARM-60
60 Quart |
|
|
| Design
Heave-duty, all purpose
mixers use a powerful, planetary mixing action
to thoroughly blend, mix and aerate all ingredients
with consistent and predictable results.
Features
- 60-quart
capacity
- 1-99minute
timer for continuous or timed operation
- Powerful 4 HP
motor
- Two speed
motor
- 220v/60/3, 50amps (440v/60/3 and
440v/50/3 available at
additional cost)
- 6-Speed gear
box with two speed motor
- Transmission:
Wide-faced, hardened alloy steel, helical
gears fully sealed in transmission lubricant
with heavy-duty ball bearings and clutch
combine for highly dependable, quiet
operation.
- Motor cooling
system.
- New safety Guard
available.
- NSF approved
coating.
- Baked painting.
- Moisture
resistant switches
- Motor thermal protector.
- No-volt
Release: Prevents activation of the mixer in
the event of power interruption
- Bowl lift:
Manual bowl lift operated and self-locking
in to position
- #12 size taper
hub for attachments
- Cast base
construction. Silver metallic finish using
epoxy powder coat enamel for easy cleaning
- Attached
6-foot, flexible, 3-wire cord and plug for
grounded receptacle
Standard Accessories
- 60-quart
s/steel bowl.¡@
- Flat batter beater
- Spiral dough hook
- Wire whip
- Safety bowl Guard
- Attachment hub
Optional
Accessories
- #12 taper hub meat
grinder (ARM-02A)
- #12 taper hub
Vegetable shredder with plate holder
(ARM-02B)
- Bowl dolly
- Reduction set
- EXTENDED WARRANTY up
to 6 years
|
|
Spec Sheet |
| Motor |
6-speed
4HP continuous
30 amps |
| Electrical |
220/60/3
440v/60/3 and 440v/50/3
available |
| Speed Range |
Beater: 18-100
Hub: 38-228 |
| Weight |
Net: 1018lbs (462kg)
Ship: 1180lbs (536kg) |
| Product Dimensions |
Width: 32'' (813mm)
Depth: 43.8'' (1113mm)
Height: 61.8'' (1569mm) |
| Box Dimensions |
Width: 33.8'' (858mm)
Depth: 47'' (1193mm)
Height: 71.8'' (1828mm) |
|

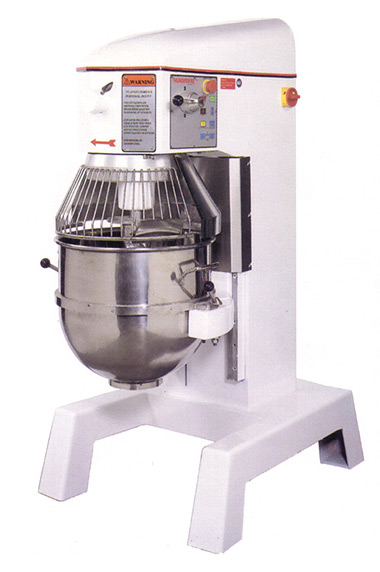

ARM-80
80 Quart
|
|
|
| Design
Heave-duty, all purpose
mixers use a powerful, planetary mixing action
to thoroughly blend, mix and aerate all ingredients
with consistent and predictable results.
*Same shape as ARM-60 but
80 quart 5HP
Features
- 80-quart
capacity
- 1-99minute
timer for continuous or timed operation
- Powerful 5 HP
motor
- Two speed
motor
- 220v/60/3, 50amps (440v/60/3 and
440v/50/3 available at
additional cost)
- 6-Speed gear
box with two speed motor
- Transmission:
Wide-faced, hardened alloy steel, helical
gears fully sealed in transmission lubricant
with heavy-duty ball bearings and clutch
combine for highly dependable, quiet
operation.
- Motor cooling
system.
- New safety Guard
available.
- NSF approved
coating.
- Baked painting.
- Moisture
resistant switches
- Motor thermal protector.
- No-volt
Release: Prevents activation of the mixer in
the event of power interruption
- Bowl lift:
Manual bowl lift operated and self-locking
in to position
- #12 size taper
hub for attachments
- Cast base
construction. Silver metallic finish using
epoxy powder coat enamel for easy cleaning
- Attached
6-foot, flexible, 3-wire cord and plug for
grounded receptacle
Standard Accessories
- 80-quart
s/steel bowl.¡@
- Flat batter beater
- Spiral dough hook
- Wire whip
- Safety bowl Guard
- Attachment hub
Optional
Accessories
- #12 taper hub meat
grinder (ARM-02A)
- #12 taper hub
Vegetable shredder with plate holder
(ARM-02B)
- Bowl dolly
- Reduction set
- EXTENDED WARRANTY up
to 6 years
|
|
Spec Sheet |
| Motor |
6-speed
5HP continuous
60 amps |
| Electrical |
220/60/3
440v/60/3 and 440v/50/3
available |
| Speed Range |
Beater: 18-100
Hub: 38-228 |
| Weight |
Net: 1025lbs (466kg)
Ship: 1200lbs (538kg) |
| Product Dimensions |
Width: 32'' (813mm)
Depth: 43.8'' (1113mm)
Height: 66'' (1676mm) |
| Box Dimensions |
Width: 33.8'' (858mm)
Depth: 47'' (1193mm)
Height: 71.8'' (1828mm) |
|
¡@
ARM-60(4s)
60 Quart
4 Speed |
|
Spec Sheet |
| Motor |
4HP, 4 speed gear driven pizza mixer
60 quart, oil bath gear box |
| Electrical |
220V / 1phase or 3 phase |
| Speeds |
70, 132, 216, 384rpm |
| Weight |
870lbs |
| Product Dimensions |
43.3"(L) x 29.2"(W) x 59.85"(H)
1100mm(L) x 740mm(W) x 1520mm(H) |
|

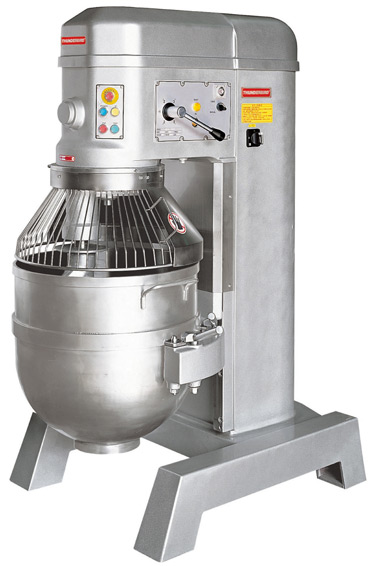

ARM-140
140 Quart
|
|
Spec Sheet |
| Motor |
6HP, 140qt capacity |
| Electrical |
220V /3phase |
| Speeds |
87, 149, 204, 346rpm |
| Weight |
~2000lbs |
| Product Dimensions |
48"(L)x34"(W)x68"(H) |
|
ARM-200
200 Quart
|
|
Spec Sheet |
| Motor |
7HP, 200qt |
| Electrical |
220V /3phase |
| Speeds |
87, 149, 204, 346rpm |
| Weight |
~2200lbs |
| Product Dimensions |
48"(L)x34"(W)x68"(H) |
|
|
We reserve the right for any technical specifications changes without notice.
|
|
