TDR-36A TDR-36 TDR-1380
TDR-2380¡@ ¡@ ¡@
¡@ ¡@ ¡@

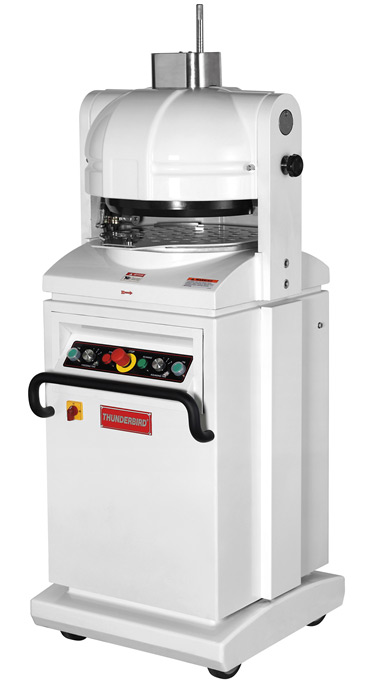

TDR-36A

Features

  • Automatic Dough Divider Rounder.
  • Uniformly scales and Rounds pieces.
  • S/steel Cutting Knives and Teflon coating Disc / crown for sanitary purpose.
  • Dividing Disc can be turned to front side for easy cleaning.
  • Three section pressing and rounding time.
  • Wheel mounted for easy mobility.
  • CE, NSF, Approval.

Technical Data

  • 36 parts: 25 grams - 100 grams (0.8 Oz - 3.5 Oz)

  • Power: 220V/1 phase, 1Hp, 0.75Kw (Other Voltages on requested¡^
  • Dimensions: 650x700x1720 mm
  • Weight: 470 Kgs

Click here to convert Units (Will pop up a new window)

Optional Dividing unit

  • 14 parts 130-250 grams
  • 30 parts 30-110 grams
  • 52 parts 16-45 grams



¡@

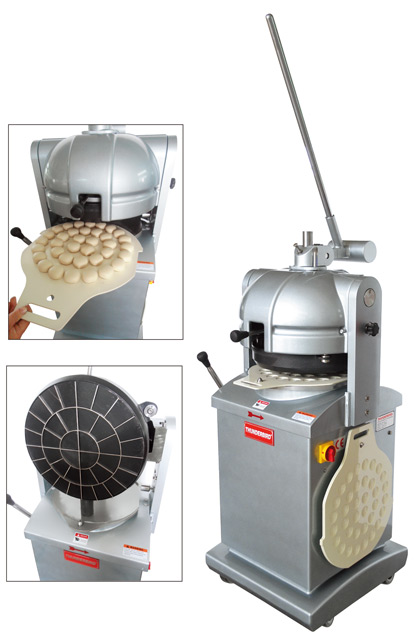

TDR-36

Specs:

  • 36 parts: 25 grams - 100 grams (0.8 Oz - 3.5 Oz)

  • 115V, 60Hz, 1ph. (available in 220V / 50Hz, or 60Hz 1hp.)
  • Power: 3/4HP (0.55KW)
  • Optional dividing unit:
    Dividing Parts Dough ball weight
    14 parts 130-250 grams (4.5oz - 8.8oz)
    30 parts 25-110 grams (0.8oz - 3.5oz)
    52 parts 16-45 grams (0.5oz - 1.6oz)
  • weight: 792lbs
  • Dimension: 26.5" x 26.5" x 59.5"

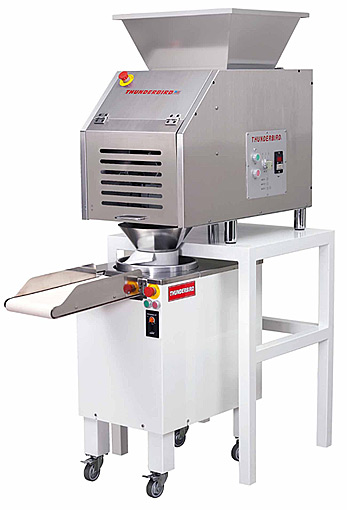

TDR-1380

TDR-1380

Features

  • Dimensions: 23.2"(L) x 44.3"(W) x 62.9"(H)
  • Makes Dough Ball Sizes from 1oz ~ 24oz!
  • Makes up to 1,600 balls per HOUR!
  • Handles up to 64lbs of dough!
  • 115V / Single Phase! (220V available)
  • Weight: 397lbs (+ 85lbs = shipping weight)

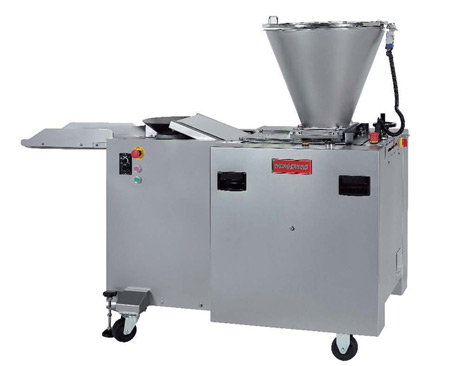

TDR-2380

Features
  • High Speed Automatic Dough Divider/rounder
  • Dough Ball Sizes: 2 oz up to 24 oz!
  • Up to 1,600 balls per hour!
  • 220V / 1 Phase
  • 69"(L) x 26"(W) x 51"(H) or 1754mm(L) x 665mm(W) x 1292mm(H)
  • Weight: 890lbs or 405kgs

We reserve the right for any technical specifications changes without notice.
